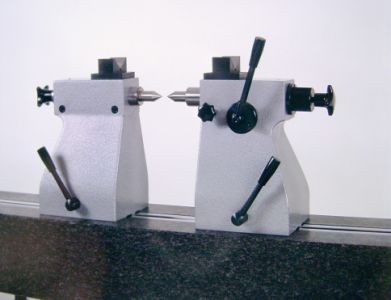

Pair of tailstocks

Article no. G-150
Made of dense, aged and stress relieved special cast iron with high wear resistance. Tailstocks are delivered in pairs, one tailstock with stationary and one with axially adjustable tail spindle. Spindles and dead centres are hardened and precision ground. The sliding blocks have a nominal size of 14 mm. The tailstocks can be fixed to the T-slot with the help of an excentric adjusting device. Hand wheel, adjustable by means of an adjustable tail pressure. To the customers’ wishes the tailstocks can be delivered with or without hardened and precision ground prisms, with saving 90°.

The heavy construction with hand wheel can be maximal loaded with double weight. For more weight special roll blocks are available.

settings_suggest   Specifications

Categorie: Granite products, Support/accessories, Pair of tailstocks

Centerheight (mm) Insider tape MK Length (mm) Weight/pair (kg) Grade 00 Grade 0 Grade 1 Max. load kg*
100 2 290 10 40
150 2 360 25 100
200 2 390 30 ± 0,004 mm ± 0,008 mm ± 0,015 mm 150
250 3 490 55 300
300 3 570 80 300

* Max. load of the normal tailstocks with tail spindle.
