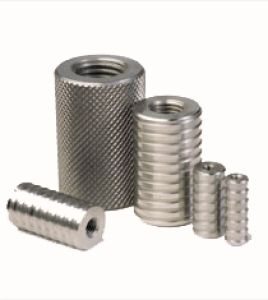

Inserts
Article no. G-110
Application
For mounting accessories, clamping work pieces to the surface and sides of the surface plate.
Categorie: Granite products, Support/accessories, Inserts
![](https://plate.libpx.com/prod1-img/e886f4f53d/close%20up%20uitstekende%20draadbussen%201.jpg?width=360&quality=85&dpr=1.5&crop=0%2C0%2C4256%2C2832&signature=e6af95ceca3f24a57e7307cf3d0f29f47ef0e05b)
Thread (mm) | Insert | Pull power | |
---|---|---|---|
Size | Depth | Ø mm | (Nm) max. |
M3 | 15 | 10 | 3 |
M4 | 15 | 10 | 3 |
M5 | 20 | 14 | 5 |
M6 | 20 | 14 | 10 |
M8 | 30 | 20 | 20 |
M10 | 30 | 20 | 40 |
M12 | 30 | 20 | 50 |
M16 | 40 | 30 | 150 |
M20 | 50 | 40 | 200 |
