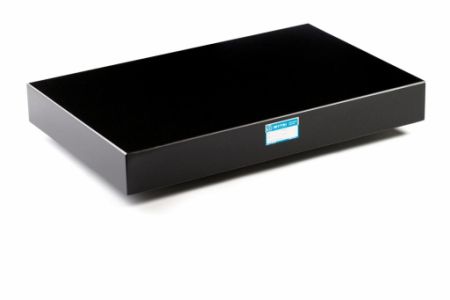

Präzisions Granit-Meßplatten
Artikel Nr. G-100
Verwendung
Als Basis für Kontroll-, Montage- und Laborzwecke.
Categorie: PRÄZISIONS GRANIT-MEßPLATTEN, Messprodukte Granit
| Abmessungen (mm) | Abweichungen (µ) | Gewicht (± Kg.) | ||||
|---|---|---|---|---|---|---|
| Länge | Breite | Höhe | 876/00 | 876/0 | 876/I | |
| 200 | 150 | 50 | 2,0 | 4,0 | 12,0 | 4 |
| 250 | 250 | 50 | 2,5 | 5,0 | 12,5 | 9 |
| 300 | 200 | 50 | 3,0 | 5,0 | 13,0 | 9 |
| 300 | 300 | 50 | 3,0 | 5,0 | 13,0 | 13 |
| 400 | 250 | 60 | 3,0 | 6,0 | 14,0 | 18 |
| 400 | 400 | 60 | 3,0 | 6,0 | 14,0 | 29 |
| 500 | 500 | 80 | 3,0 | 6,0 | 15,0 | 60 |
| 630 | 400 | 80 | 3,0 | 7,0 | 16,0 | 60 |
| 630 | 630 | 80 | 3,0 | 7,0 | 16,0 | 95 |
| 800 | 500 | 100 | 3,6 | 7,0 | 18,0 | 120 |
| 1000 | 630 | 100 | 4,0 | 8,0 | 20,0 | 190 |
| 1000 | 630 | 150 | 4,0 | 8,0 | 20,0 | 285 |
| 1000 | 1000 | 100 | 4,0 | 8,0 | 20,0 | 300 |
| 1000 | 1000 | 150 | 4,0 | 8,0 | 20,0 | 450 |
| 1200 | 800 | 150 | 4,4 | 8,8 | 22,0 | 432 |
| 1200 | 800 | 200 | 4,4 | 8,8 | 22,0 | 576 |
| 1500 | 1000 | 150 | 5,0 | 10,0 | 25,0 | 675 |
| 1500 | 1000 | 200 | 5,0 | 10,0 | 25,0 | 900 |
| 2000 | 1000 | 200 | 6,0 | 12,0 | 30,0 | 1200 |
| 2000 | 1000 | 250 | 6,0 | 12,0 | 30,0 | 1500 |
| 2000 | 1250 | 250 | 6,0 | 12,0 | 30,0 | 1875 |
| 2500 | 1250 | 300 | 7,0 | 14,0 | 35,0 | 2800 |
| 2500 | 1500 | 300 | 7,0 | 14,0 | 35,0 | 3400 |
| 3000 | 1250 | 350 | 8,0 | 16,0 | 40,0 | 4000 |
| 3000 | 1500 | 350 | 8,0 | 16,0 | 40,0 | 4600 |
| 3000 | 2000 | 350 | 8,0 | 16,0 | 40,0 | 6100 |
| 4000 | 2000 | 400 | 10,0 | 20,0 | 50,0 | 9300 |
| Güte 00 | 2 µ + L : 500 |
| Güte 0 | 4 µ + L : 250 |
| Güte 1 | 10 µ + L : 100 |
